SCHMIDT® PC Programming Kit - Measurement Technology and Accessories
SCHMIDT® PC Programming Kit - Measurement Technology and Accessories. Operating system Windows 7 and higher, Application interface SCHMIDT(R) PC-Programming Software
Product Overview

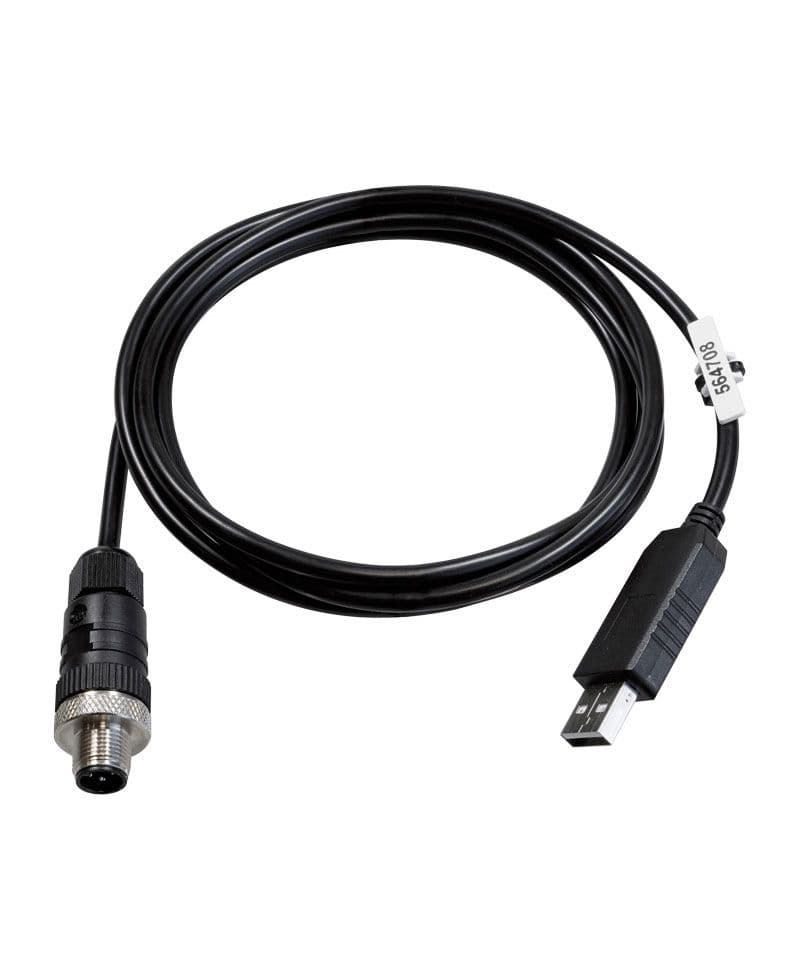

The SCHMIDT® PC Programming Kit is part of the SCHMIDT Measurement Technology and Accessories line. With the SCHMIDT® PC Programming Kit, SCHMIDT® Flow Sensors with integrated module interface, such as the IL 30.0xx MPM, Mini-IL or SS 20.715, can be parameterised by cable via a standard Windows PC. The following parameters can be adapted:Sensor nameAnalogue outputs (scaling)Damping (4 levels)Units of measurement (flow and temperature)Pulse value of pulse outputToggling module interface to Modbus operationIn addition, real-time data can be displayed and r... We supply genuine, brand-new SCHMIDT Technology products with selection support, technical documentation and stable supply.
Specifications
| Operating system | Windows 7 and higherPC 要求 |
|---|---|
| Application interface | SCHMIDT(R) PC-Programming Software (Modbus operation: Version 4.0.0 of higher)PC 要求 |
| Operating current | < 100 mA编程电缆 |
| 电气连接 / Electrical connection | Cable: | To / at sensor: Socket plug M12 (A-coded), male, 4-pin | PC: USB, type A (2.0) | Sensor: Socket plug M12, male, 4-pol, A-coded | PC: USB, type A (2.0)编程电缆 |
| Length | 1.5 m编程电缆 |
| 重量 / Weight | 150 g编程电缆 |
| 工作温度 / Operating temperature | 0 ... +60 °C编程电缆 |
| 存储温度 / Storage temperature | -25 ... +80 °C编程电缆 |
| 湿度 / Relative humidity | Non-condensing (<= 95 % rH)编程电缆 |
| 防护等级 / Protection type | IP65 (connector of sensor)编程电缆 |
| 防护等级 / Protection class | III (PELV)编程电缆 |
| Model | SCHMIDT(R) sensor with integrated module / Modbus interface传感器 |
| Operating | Supply voltage (24 VDC / 200 mA) of sensor connected传感器 |
Related Products

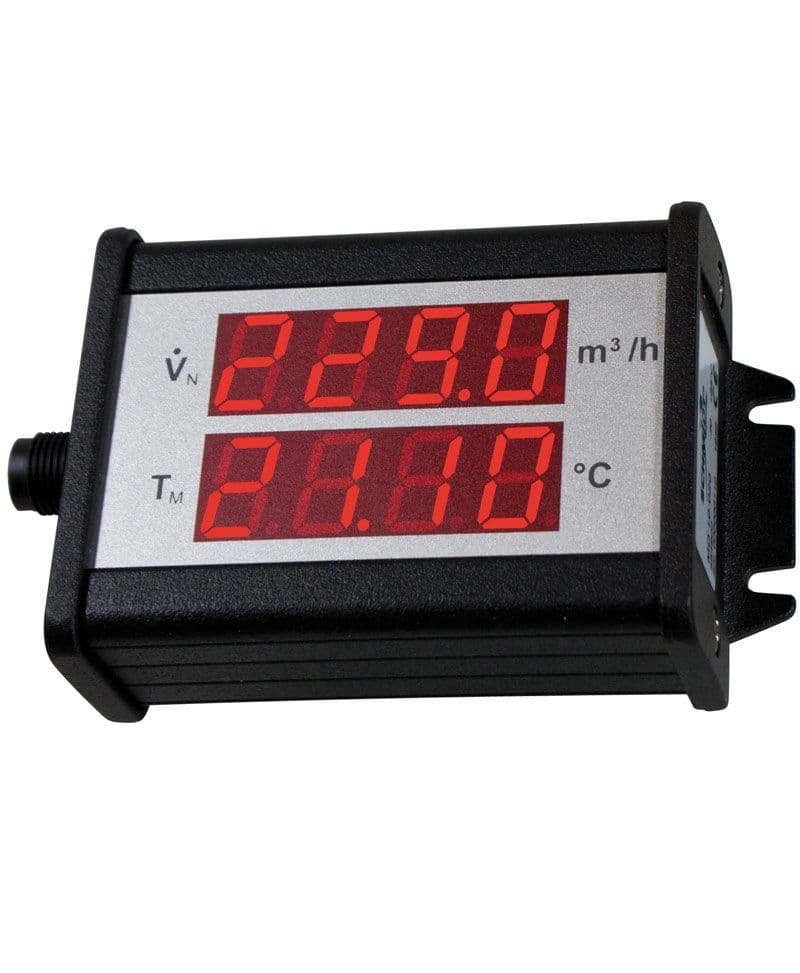

SCHMIDT® Measuring value module MD 10.020 - Measurement Technology and Accessories

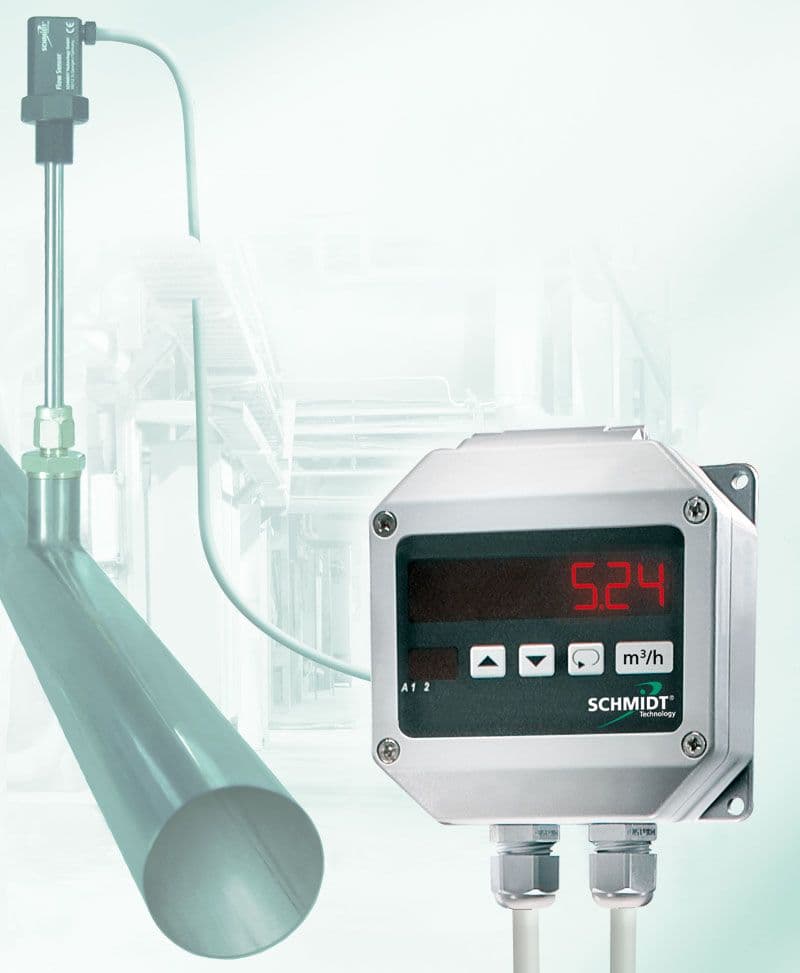

SCHMIDT® LED measured value display MD 10.010 / MD 10.0 - Measurement Technology and Accessories
SCHMIDT® Data Logger DL 10.010 - Measurement Technology and Accessories

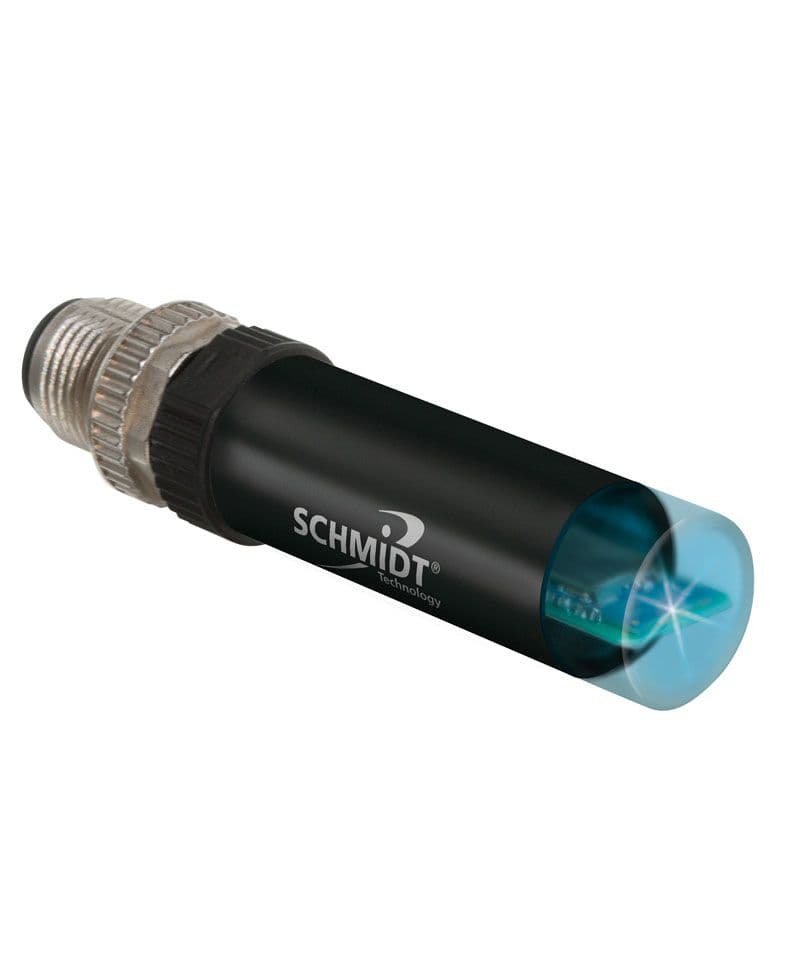

SCHMIDT® Bluetooth® Module BT 10.010 - Measurement Technology and Accessories
