Flow Sensor HVAC 100

SCHMIDT® Flow Sensor HVAC 100 - Flow Sensors for HVAC

Name: SCHMIDT® Flow Sensor HVAC 100 - Flow Sensors for HVAC
Brand: SCHMIDT Technology
SKU: schmidt-schmidt-flow-sensor-hvac-100
Availability: LimitedAvailability

SCHMIDT TechnologyLead Time on InquiryOrigin 德国

SCHMIDT Flow Sensors

SCHMIDT® Flow Sensor HVAC 100 - Flow Sensors for HVAC. Humidity Measuring mode: Non-condensing (< 95 % RH), Operating pressure (max.) Atmospheric (700 ... 1,300 hPa)

询价获取报价与交期

Product Overview

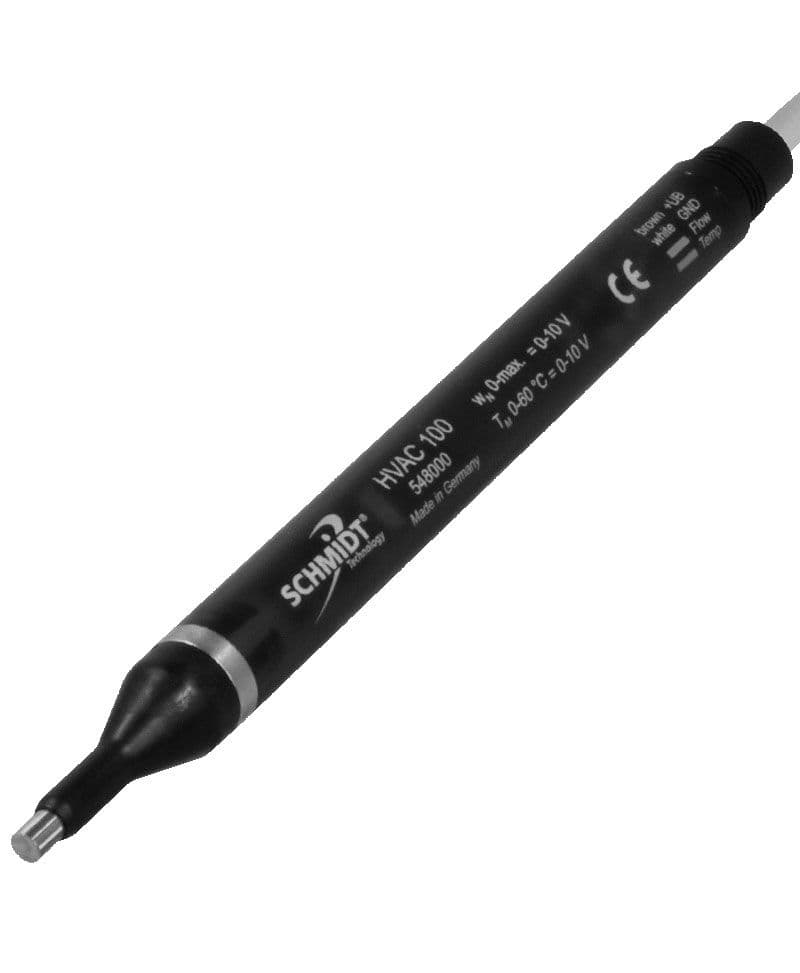

The SCHMIDT® Flow Sensor HVAC 100 is part of the SCHMIDT Flow Sensors for HVAC line. Cylindrical sensor head (largely independent from flow direction, easy to clean)Flow and temperature signalProbe length 144 mm (optional extendable)Measuring ranges 0 ... 2.5 m/s to 0 ... 20 m/s At many applications like ventilation, exhaust and air-conditioning systems, it is necessary to measure flow velocity, mass flow as well as the temperature of the medium to ensure an energy efficient operation of the unit. We supply genuine, brand-new SCHMIDT Technology products with selection support, technical documentation and stable supply.

Specifications

湿度 / Humidity	Measuring mode: Non-condensing (< 95 % RH)通用参数
工作压力 / Operating pressure (max.)	Atmospheric (700 ... 1,300 hPa)通用参数
供电电压 / Supply voltage	24 V DC ± 20 %通用参数
电流消耗 / Current consumption	Typ. < 35 mA (max. 80 mA)通用参数
模拟输出 / Analog outputs for wN and TM	2 x 0 ... 10 V (RL >= 10 kohm; CL <= 1 nF)通用参数
电气连接 / Electrical connection	Non-detachable cable, pigtail, 4 x 0,25 mm2, length 2 m, PVC通用参数
最大电缆长度 / Maximum cable length	15 m通用参数
Type of protection	IP40通用参数
防护等级 / Protection class	III (SELV)通用参数
最小插入深度 / Minimum immersion depth	35 mm通用参数
尺寸 / Dimensions	ø 12 mm, probe length 144 mm, extension tube 97 mm (extending length 85 mm)通用参数
重量 / Weight	50 g (probe)通用参数
Delivery content	Probe, mounting clamp, 1 pc. extension tube, manual通用参数
测量量 / Measuring quantity	Standard flow velocity wN based on standard conditions 1) \| Medium temperature TM技术参数
被测介质 / Measured medium	Clean air or nitrogen技术参数
量程 / Measuring range wN	0 ... 2.5 / 10 / 20 m/s技术参数
最低检出限 / Lower detection limit wN	0.2 m/s技术参数
介质温度量程 / Measuring range TM	0 ... +60 °C技术参数
Flow wN	0 ... 2.5 m/s: ±(4 % of measured value + 0.05 m/s)2) \| 0 ... 10 m/s: ±(4 % of measured value + 0.2 m/s)2) \| 0 ... 20 m/s: ±(4 % of measured value + 0.4 m/s)2)测量精度
响应时间 / Response time (t90) wN	Approx. 10 s (jump of wN from 0 to 5 m/s)测量精度
温度梯度 / Temperature gradient wN	< 1,5 K/min at 5 m/s测量精度
Temperature TM \| (wN > 2 m/s)	±1 K (10 ... 30 °C); ±2 K (remaining interval)测量精度
Sensor	-10 ... +60 °C工作温度
Sensor	PC, ABS, Brass nickel plated, PVC (cable sheath)材质
Extension tube	ABS材质
Mounting clamp	PA-GF材质
