SCHMIDT® Mass Flow Sensor IL 30.005, IL 30.010 MPM, IL - Flow Sensors and Accessories
SCHMIDT® Mass Flow Sensor IL 30.005, IL 30.010 MPM, IL - Flow Sensors and Accessories. Technology design Thermal InLine Volume Flow Sensor, Measuring quantity Standa
Product Overview

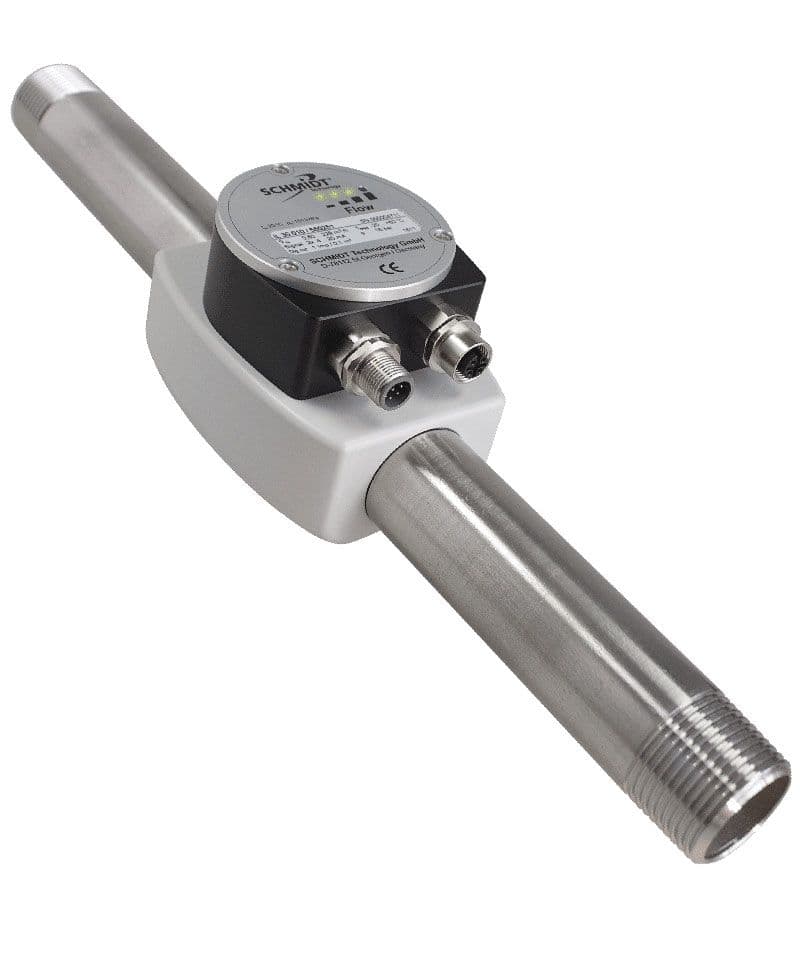

The SCHMIDT® Mass Flow Sensor IL 30.005, IL 30.010 MPM, IL is part of the SCHMIDT Flow Sensors and Accessories line. SCHMIDT® Mass Flow Sensor IL 30.0xx MPMThe air flow sensor is used for flow measurement in compressed air and gases. The sensor applies in the compressed air consumption measurement, flow measurement of passivation gases as well as for consumption measurement of compressed air tools and air-powered machines. Beginning from connection thread size 1″ the mass flow sensor is equipped with the intelligent Multi-Point-Measurement-Technology (MPM), which allows... We supply genuine, brand-new SCHMIDT Technology products with selection support, technical documentation and stable supply.
Specifications
| Technology design | Thermal InLine Volume Flow Sensor技术参数 |
|---|---|
| 测量量 / Measuring quantity | Standard volume flow VN1) | Temperature of medium TM技术参数 |
| Measuring range VN | IL 30.005: 0.5″ = 76.3 Norm-m3/h | IL 30.010 MPM: 1.0″ = 229 Norm-m3/h | IL 30.015 MPM: 1.5″ = 417 Norm-m3/h | IL 30.020 MPM: 2.0″ = 712 Norm-m3/h技术参数 |
| 最低检出限 / Lower detection limit VN | IL 30.005: 0.5″ = 0.15 Norm-m3/h | IL 30.010 MPM: 1.0″ = 0.50 Norm-m3/h | IL 30.015 MPM: 1.5″ = 1.00 Norm-m3/h | IL 30.020 MPM: 2.0″ = 2.00 Norm-m3/h技术参数 |
| 介质温度量程 / Measuring range TM | -20 ... +60 °C技术参数 |
| Measuring direction | Unidirectional技术参数 |
| 被测介质 / Measured medium | Clean (compressed) air or nitrogen; other gases on request | (fluid group 2 according PED 2014/68/EU)技术参数 |
| Measuring accuracy VN | ±(3 % of measured value + 0.3 % of fmr) 2) | With higher volume flows (> 50 % of fmr) an operating pressure > 3 bar is recommended for optimal measuring results测量精度 |
| 响应时间 / Response time (t90) VN | Approx. 5 s测量精度 |
| Measuring accuracy TM | <= ±2 K (at VN > 2 % of measuring range)测量精度 |
| Sensor | -20 ... +60 °C工作温度 |
| 湿度 / Humidity | Measuring mode: non-condensing (< 95 % RH)通用参数 |
| 工作压力 / Operating pressure | 16 bar (overpressure)通用参数 |
| 显示 / Display | 4 x Duo-LED (green/red/orange), for quasi-analogue display of volume flow as well as sensor status通用参数 |
| 供电电压 / Supply voltage | 24 V DC ± 10 %通用参数 |
| 电流消耗 / Current consumption | IL 30.005: Typ. 40 mA, max. 120 mA (without pulse output) | IL 30.0xx MPM: Typ. 90 mA, max. 300 mA (without pulse output)通用参数 |
| 模拟输出 / Analog outputs for VN and TM | Current interface (short circuit protected) | Signal range: 4 ... 20 mA (2 mA error signal) | Load: RL <= 500 ohm / CL <= 10 nF通用参数 |
| Pulse output | Highside driver (P-MOSFET at supply voltage, open drain, short circuit protected) | Pulse valence: 0.1 / 1.0 Norm-m3 | Pulse duration: 1 s (transistor conducting) | Pulse high level: > US - 1 V (current limiting inactive) | Current limit (analog): Typ. 50 mA (max. 65 mA)通用参数 |
| 电气连接 / Electrical connection | Main: Plug-in connector M12 (A-coded), male, 5-pin | Connectiong of power supply and signal outputs | Module: Plug-in connector, M12 (A-coded), female, 5-pin | Connection of an optional SCHMIDT(R) extension module | Alterantively: Modbus interface通用参数 |
| Length of connection cable | Main connector: 100 m (recommended; observe wire resistance) | Module connector: 1,200 m通用参数 |
| 安装位置 / Mounting position | Arbitrary通用参数 |
| Installation | Inner threads DN15 / DN25 / DN40 / DN50 (G½ / G1 / G1½ / G2)通用参数 |
| 防护等级 / Protection type | Sensor: IP64; electrical connectors: IP67 (with correctly attached cable)通用参数 |
| 防护等级 / Protection class | III (SELV or PELV)通用参数 |
| 尺寸 / Dimensions (L x B) | IL 30.005 / IL 30.010 MPM / IL 30.015 MPM: 100 mm x 75 mm | IL 30.020 MPM: 100 mm x 82 mm通用参数 |
| Enclosue | Aluminium, anodised材质 |
