PP-700 Series

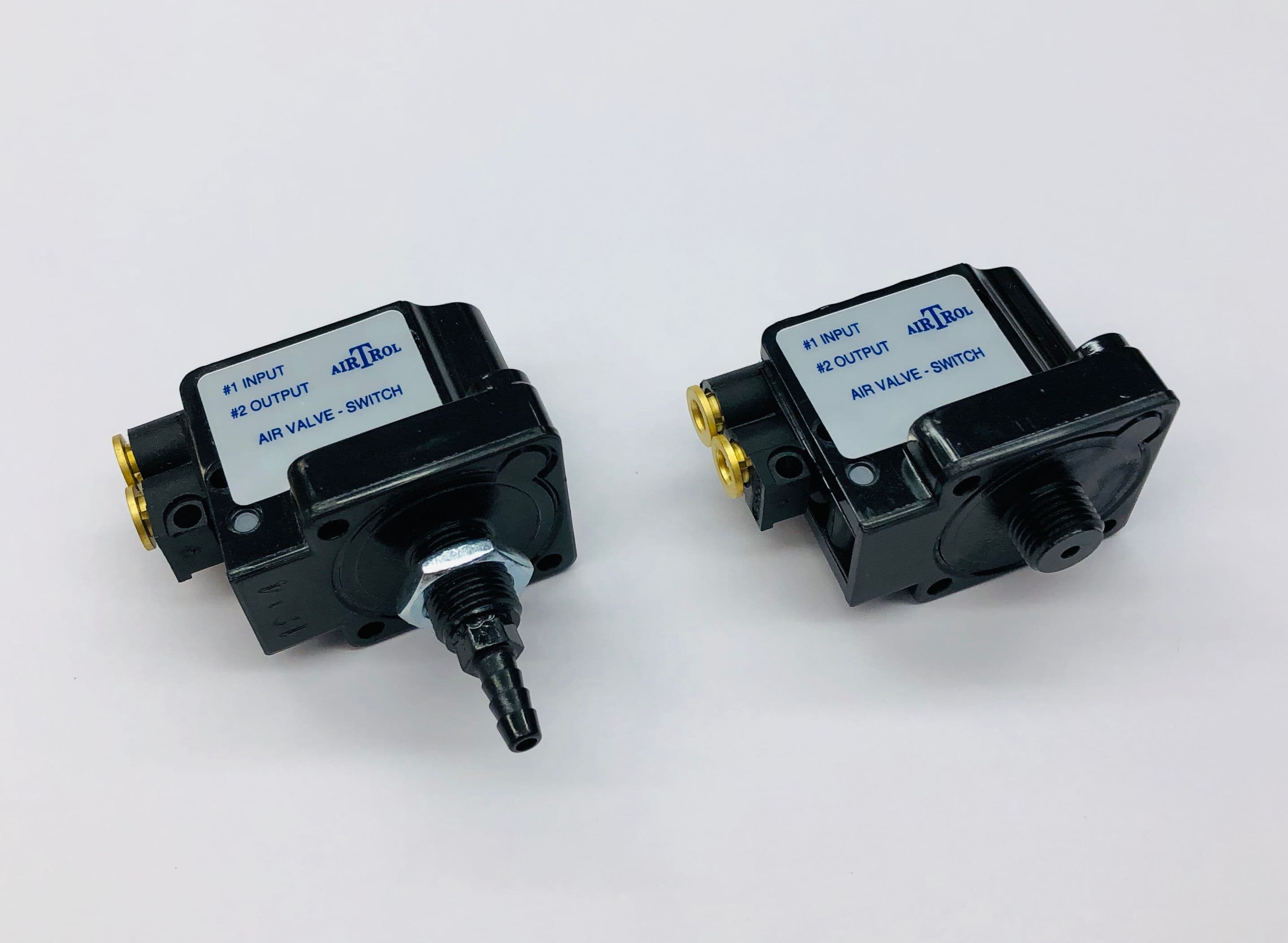

PP-700 Series Air Valve Switch
The 700 Pressure Series features a pilot-actuated air valve switch with a precision-adjustable pilot setpoint.
Product Overview
The 700 Pressure Series features a pilot-actuated air valve switch with a precision-adjustable pilot setpoint. Ideal for applications requiring intrinsic safety, pneumatic sequencing, and accurate pressure relief, it comes in four mounting styles for maximum. Key specifications: Valve Type: 3 WAY (Exhaust To Atmosphere) Air Assisted Servo; Operating Pressure: PILOT=SEE CHART, Valve=20-115 psi [Pressure Only]; Operating Speed: 64 Msec At 90 Psi VALVE INPUT; Porting: PILOT=See Ordering Info., Valve=5/32 OD Tube Push In.
Specifications
| Valve Type | 3 WAY (Exhaust To Atmosphere) Air Assisted Servo气阀开关 |
|---|---|
| Operating Pressure | PILOT=SEE CHART, Valve=20-115 psi [Pressure Only]气阀开关 |
| Operating Speed | 64 Msec At 90 Psi VALVE INPUT气阀开关 |
| Porting | PILOT=See Ordering Info., Valve=5/32 OD Tube Push In气阀开关 |
| Flow Rate | Cv-0.06, Orifice-0.080, 2.5 CFM At 100 Psi气阀开关 |
| Supply Consumption | Approx. 100 cc/min @ 90 Psi Valve Input - (Note: Valve only exhausts when in the closed position.)气阀开关 |
| Materials / Pilot | Body..Polysulfone Diaphragm..Polyurethane Spring..Stainless Others..Nylon, Acetal气阀开关 |
| Materials / Valve | Housing..Nylon Plunger..Aluminum Seals..Buna N Others..Brass气阀开关 |
| Materials / Op. Temperature | 40 to 140 F [4 - 60 C]气阀开关 |
| Repeatability | Less than +/-2% of full scale pilot adj.气阀开关 |
| Materials / Effect Of Supply | Less than 0.1 psi increase in pilot setpoint per 10 psi increase in supply气阀开关 |
| Materials / Media | Filtered Air [5 Micron]气阀开关 |
