CV-062 Series

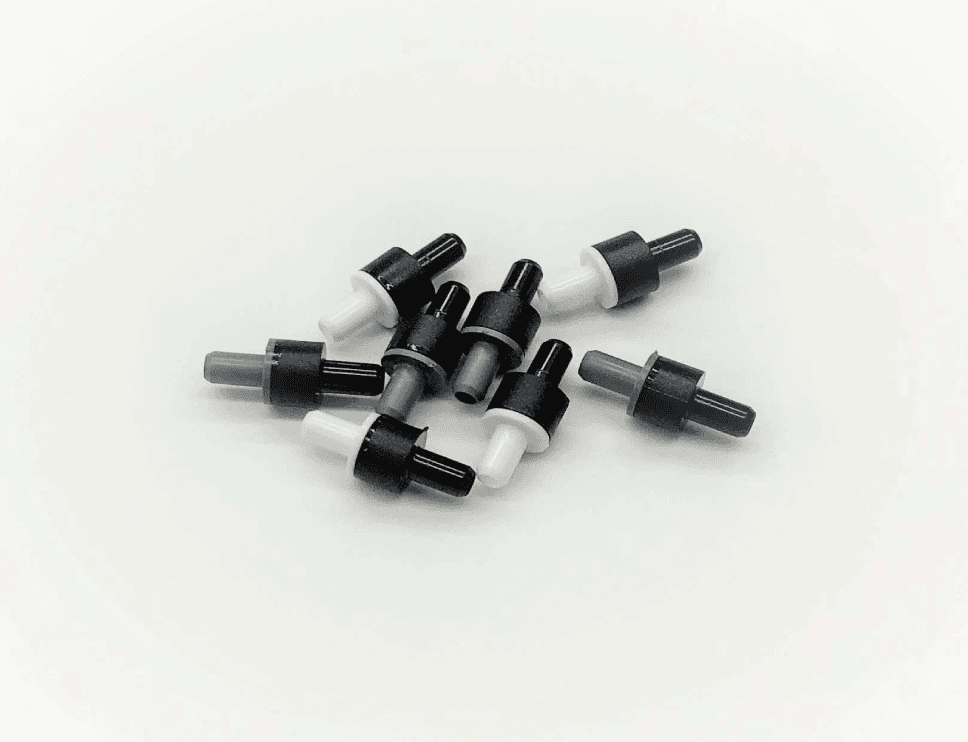

CV-062 Series Check Valve
A check valve is a type of valve that allows fluids to flow in one direction but closes automatically to prevent flow in the opposite direction (backflow).
Product Overview
A check valve is a type of valve that allows fluids to flow in one direction but closes automatically to prevent flow in the opposite direction (backflow). Key specifications: Reverse Flow: < 0.15 SCIM (2.5 cc/min) @ 1 PSI Differential; Maximum Supply: 30 PSI; Cracking Pressure: < 0.8″ Water Column; Forward Flow: 0.25 SCFM (7 LPM) at 5 PSI Supply.
Specifications
| Reverse Flow | < 0.15 SCIM (2.5 cc/min) @ 1 PSI Differential单向阀与针阀 |
|---|---|
| Maximum Supply | 30 PSI单向阀与针阀 |
| Cracking Pressure | < 0.8″ Water Column单向阀与针阀 |
| Forward Flow | 0.25 SCFM (7 LPM) at 5 PSI Supply单向阀与针阀 |
| Recommended Filtration | 5 micron单向阀与针阀 |
| Operating Temperature | 40 - 150 degrees F (4 - 66 C)单向阀与针阀 |
| Port Connections | Straight Connection for 1/16" ID Flexible Tubing单向阀与针阀 |
