AZ Pneumatica

Italian pneumatic valve and integrated-circuit manufacturer founded in Milan in the early 1980s, also serving as an international OEM manufacturer

Country of Origin: ItalyDistributorFounded: 1982Official Website

Company Profile

AZ Pneumatica 品牌 Logo

AZ Pneumatica was founded in Milan, Italy in the early 1980s. This family-owned manufacturer of pneumatic valves and ancillary components covers solenoid, air-piloted, mechanical, manual and micro valves; ISO 6431/6432, compact, rodless, rotary and clamping cylinders; air preparation units (filters, regulators, lubricators) and accessories such as lockable shut-off valves, quick exhaust valves, slow-start valves, check valves and manifolds. The company's core business is the customisation and production of integrated pneumatic air circuits, and it is also an internationally recognised OEM manufacturer whose products appear in the catalogues of several of the world's top-10 pneumatic valve manufacturers. AZ Pneumatica is UNI EN ISO 9001:2008 (IAF 18) certified with heavily automated and robotised production. We supply genuine, brand-new AZ Pneumatica products with selection support, technical documentation and stable supply.

Core Technology & Advantages

Italian manufacturing and OEM heritage

Founded in Milan in the early 1980s with 61% OEM manufacturing; products listed in catalogues of top-10 pneumatic valve makers

Integrated air-circuit customisation

Core business is the customisation and production of integrated pneumatic air circuits for compact, cost-effective solutions

Certified quality system

UNI EN ISO 9001:2008 (IAF 18) certified with process control across the whole manufacturing flow

AZ Pneumatica Product List

AZ Parts & Accessories
Parts & AccessoriesLead Time on Inquiry

AZ Parts & Accessories

AZ Pneumatica

AZ Accessories complete the modular range of pneumatic control products: lockable shut-off valves, quick exhaust valves (pneumatic and electric), slow-start valves, check valves, porting.

AZ Pneumatic Accessories
AZ Fluid Dispenser
Fluid DispenserLead Time on Inquiry

AZ Fluid Dispenser

AZ Pneumatica

AZ Fluid Dispensers are compact liquid-feeding units for systems requiring a reserved amount of liquid, particularly aluminium cutting and tooling machinery. Built in solid aluminium with a.

AZ Pneumatic Air Preparation
AZ Lubricators
LubricatorsLead Time on Inquiry

AZ Lubricators

AZ Pneumatica

AZ Lubricators deliver correct compressed-air lubrication in 1/4" and 1/2" versions with bowl capacities of 40 cm³ and 80 cm³ respectively. They allow refilling even in pressurised systems.

AZ Pneumatic Air Preparation
AZ Pressure Regulators
Pressure RegulatorsLead Time on Inquiry

AZ Pressure Regulators

AZ Pneumatica

AZ Pressure Regulators ensure correct pressure regulation in 1/4" and 1/2" versions, panel-mountable via a simple nut and featuring a lockable top. Diaphragm-type relieving design; input.

AZ Pneumatic Air Preparation
AZ Filter Separator
Filter SeparatorLead Time on Inquiry

AZ Filter Separator

AZ Pneumatica

AZ Filter Separators provide clean, condensation-free compressed air in 1/4" and 1/2" versions, operating to 16 bar with 95% moisture separation and a 5 μm internal element. With optional.

AZ Pneumatic Air Preparation
AZ Filter Regulator
Filter RegulatorLead Time on Inquiry

AZ Filter Regulator

AZ Pneumatica

AZ Filter Regulators deliver clean, condensation-free air with proper pressure regulation in 1/4" and 1/2" versions. Cyclone system with 5 μm filter element and 95% grade moisture.

AZ Pneumatic Air Preparation
AZ Air Preparation Units
Air Preparation UnitsLead Time on Inquiry

AZ Air Preparation Units

AZ Pneumatica

AZ Air Preparation Units provide complete filtration, regulation and lubrication of pneumatic systems in 1/4" and 1/2" versions. Cyclone separator and 5 μm filter element deliver 95%.

AZ Pneumatic Air Preparation

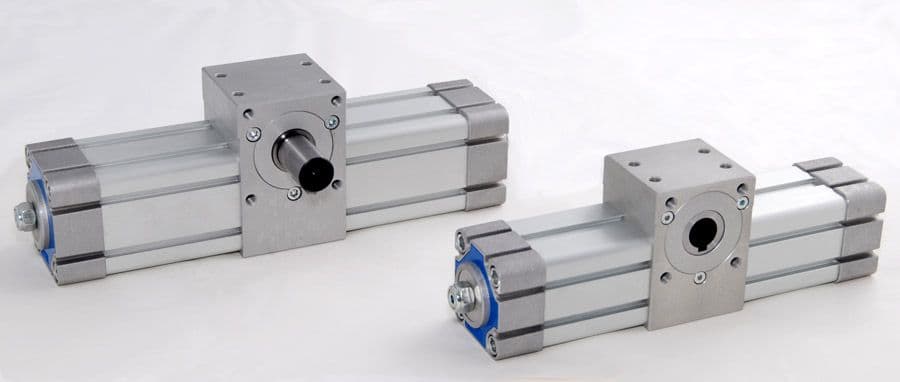

AZ Rotary Cylinders
Rotary CylindersLead Time on Inquiry

AZ Rotary Cylinders

AZ Pneumatica

AZ Rotary Cylinders cover bore sizes 32 to 125 mm with rotation angles of 90°, 180°, 270° and 360° plus a 10° adjustment span, generating torques from 7.2 to 306 Nm. Double-acting only, NBR.

AZ Pneumatic Cylinders

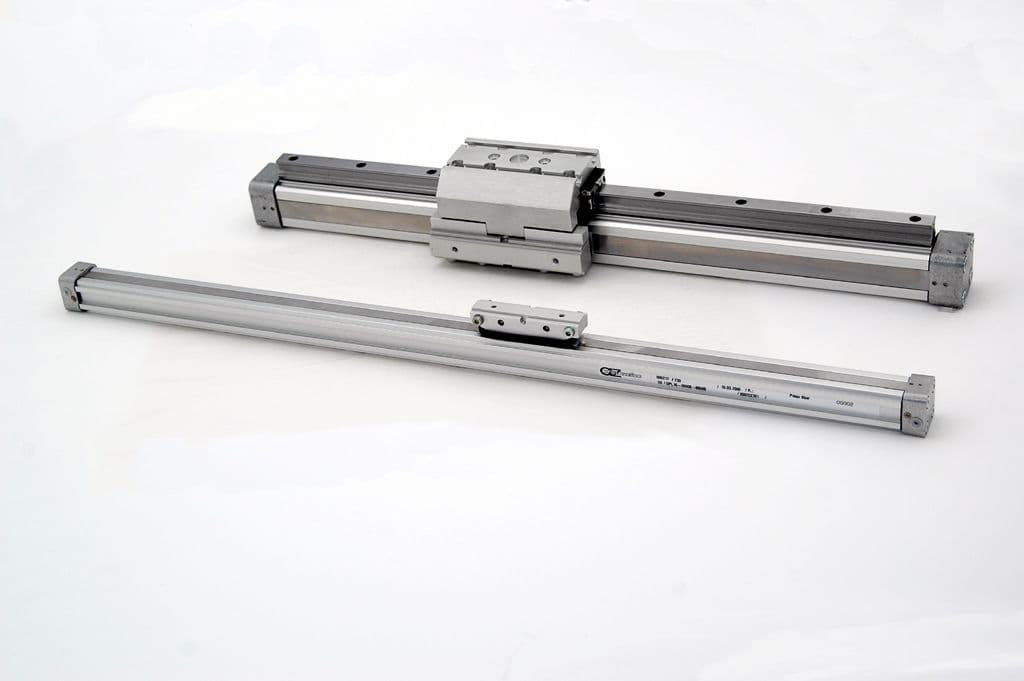

AZ Rodless Cylinders
Rodless CylindersLead Time on Inquiry

AZ Rodless Cylinders

AZ Pneumatica

AZ Rodless Cylinders (OPL) offer bores from 16 to 80 mm with stroke lengths up to 6 metres. Anodised aluminium barrel with flexible corrosion-resistant spring-steel inner bands gives.

AZ Pneumatic Cylinders

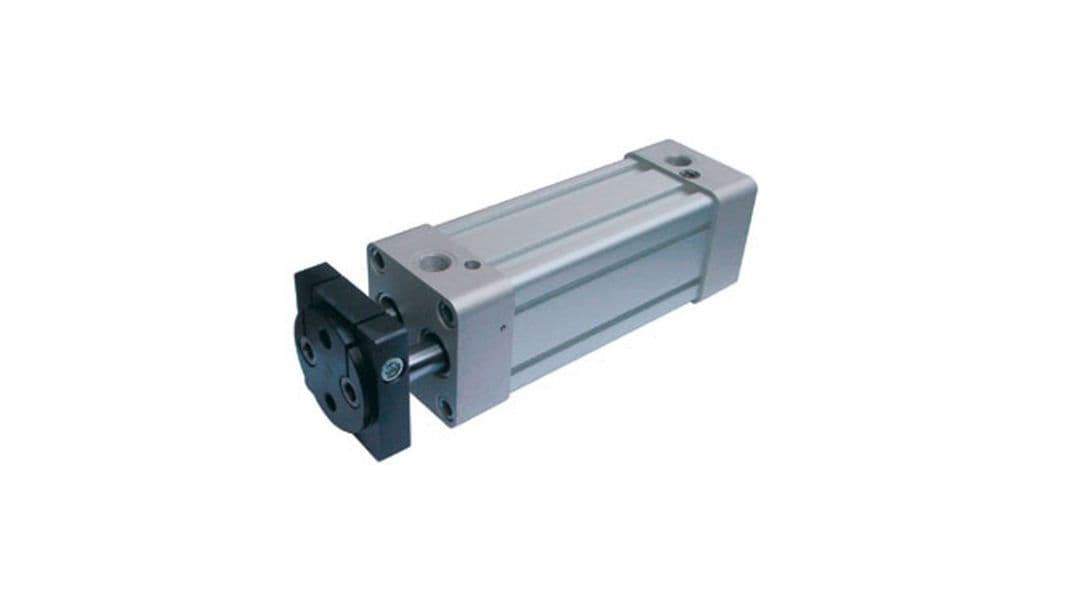

AZ Twin Rod Cylinders
Twin Rod CylindersLead Time on Inquiry

AZ Twin Rod Cylinders

AZ Pneumatica

AZ Twin Rod Cylinders are double-acting, twin-rod, non-rotating pneumatic linear actuators with bores from Ø32 to Ø100 mm, adjustable pneumatic cushioning and magnetic piston. Particularly.

AZ Pneumatic Cylinders

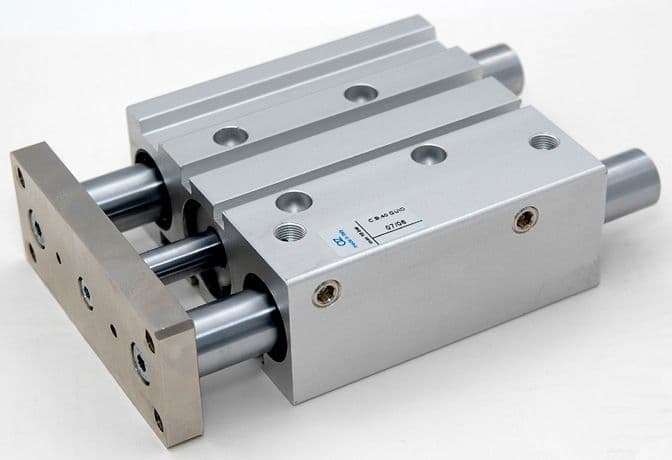

AZ Guided Compact
Guided CompactLead Time on Inquiry

AZ Guided Compact

AZ Pneumatica

AZ Guided Compact Cylinders are robust guided units with nickel-plated attachment plate and two column guides running on sintered-bronze or linear ball bearings. Bores from 16 to 63 mm with.

AZ Pneumatic Cylinders

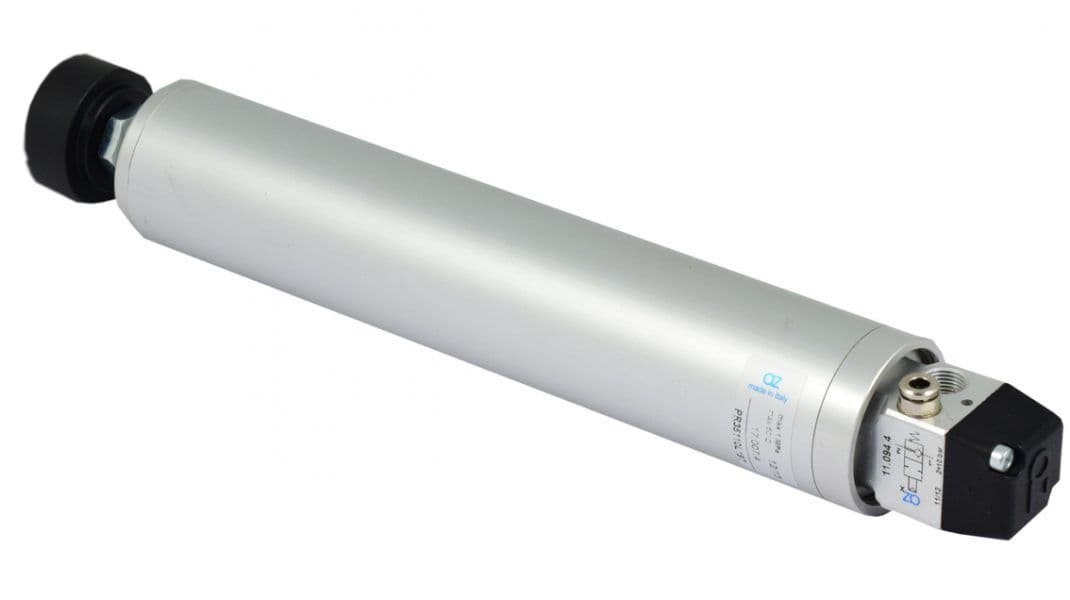

AZ Clamping Cylinders
Clamping CylindersLead Time on Inquiry

AZ Clamping Cylinders

AZ Pneumatica

AZ Clamping Cylinders are single-acting spring-return cylinders with hexagonal anti-rotation steel rods, for clamping in wood and aluminium cutting machines. Available in 25 mm and 35 mm.

AZ Pneumatic Cylinders

Need model selection, datasheets or a quote for AZ Pneumatica?

Tell us the specific model or application scenario, and we'll provide selection advice, technical documentation and a quotation.
